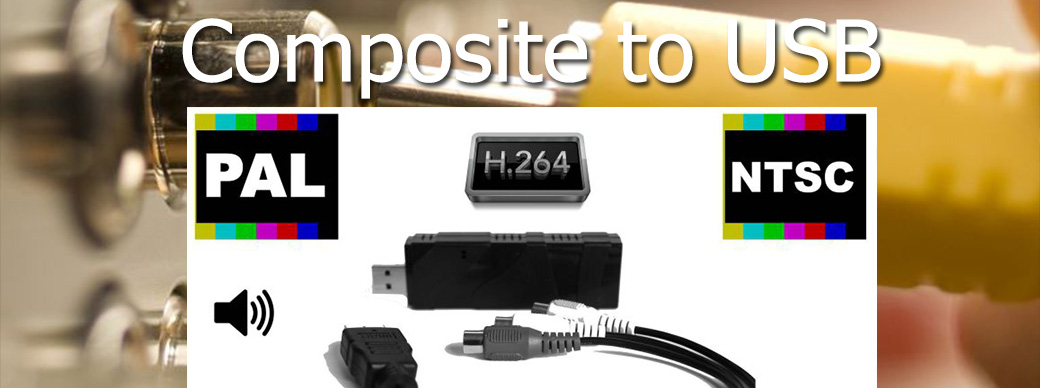

PZ-CV-H264 Capture Module
Share It
Play Zone HD Model PZ-CV-H264 provides ability to input, display and capture composite video, PAL/NTSC via USB 2.0 interface. The driver free PZ-CV-H264 Input module is detected as a standard webcam device by most operating systems, allowing it to be used by applications such as Skype, Google Hangouts, Twitch TV and more as a webcam, 2 channel embedded audio is available as the microphone audio source when used with 3rd party applications.
Playzone HD PZ-CV-H264 is a compact device that enables composite video to be displayed and captured via USB 2.0 interface in H264 MPEG4. PZ-CV-H264 can be used to monitor PAL/NTSC signals on a tablet or PC which is ideal for any video engineers toolkit, simply connect the device to any USB port and open VLC or any other application to display the video input and audio on channels 1 and 2. Ideal for use with 3rd party applications such as Skype, Google Hangouts and more to feed composite video as a camera source. The PZ-CV-H264 is powered by the USB slot and does not require any external power,the device auto detects incoming video format and does not require any additional drivers to be installed
The PZ-CV-H264 can accept PAL/NTSC video input and provides a H264, YUV or MJPG output at 720x576, 640x480 or 320x240 at 25fps for PAL video input and 720x480, 640x480 or 320x240 at 30fps for NTSC video input,along with 44.1 kHz 2 channel stereo audio mic output.
PZ-CV-H264 can be used with the Raspberry Pi computer to capture video and audio via the Pi's USB port, the device can be used with the V4L/UVC driver and is seen as Dev0.
The PZ-CV-H264 5V (USB)powered, 350mA, 50 grams. H=20mm x L=100mm x W=32mm - Note all specifications subject to change without notice.
PZ-CV-H264 capture composite video / audio via USB 2.0
$149 / £115
